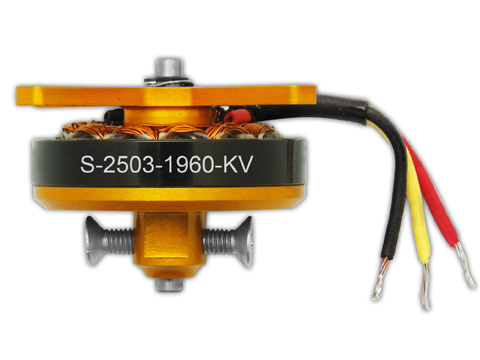

The Scorpion S-2503-1960 F3P Special motor is designed to be the ultimate competition motor for the indoor F3P planes. This motor is designed to run on a 2-cell Li-Po battery pack, and when teamed up with a Scorpion 11 amp ESC, provides a potent power system for your indoor model. The S-2503-1960 motor features a Titanium Main shaft, and tips the scales at a scant 20 grams (0.69 ounces). This motor was optimized to work with props such as the GWS 8x4DD and 8x4.3SF, which are so popular with the indoor fliers.

Scorpion Competition Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Coated to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are rated for operation at 200 degrees C (392 F), making a motor that is virtually impossible to burn up in normal use.

Since this motor is designed to be as light as possible, and since most indoor flyers solder their motor directly to the ESC, no connectors are included with this motor.

Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. For the best overall combination of quality, performance, and value, give Scorpion Motors a try!



Specifications

Stator Diameter .................................. 25 mm (0.98 in)
Stator Thickness ................................... 3 mm (0.12 in)
No. of Stator Arms .................................................. 12
No. of Magnet Poles ................................................ 16
Motor Wind .............................................. 22 Turn Wye
Motor Wire ...................................... 6-Strand 0.21 mm
Motor Kv .............................................. 1960 RPM/Volt
No-Load Current (Io/10V) ............................ 0.44 Amps
Motor Resistance (RM) ............................... 0.135 Ohms
Max Continuous Current ................................. 11 Amps
Max Continuous Power ................................... 80 Watts
Weight ........................................... 20 Grams (0.69 oz)
Outside Diameter .............................. 30.1 mm (1.18 in)
Shaft Diameter ................................. 2.98 mm (0.12 in)
Body Length ....................................20.57 mm (0.81 in)
Overall Shaft Length ......................... 25.7 mm (1.01 in)
Max Lipo Cell ......................................................... 2S
Max Peak Current .................................... 14A (10 sec.)
Max Peak Power ............................. 100 Watts (10 sec.)
Shaft Material ................................................ Titanium
